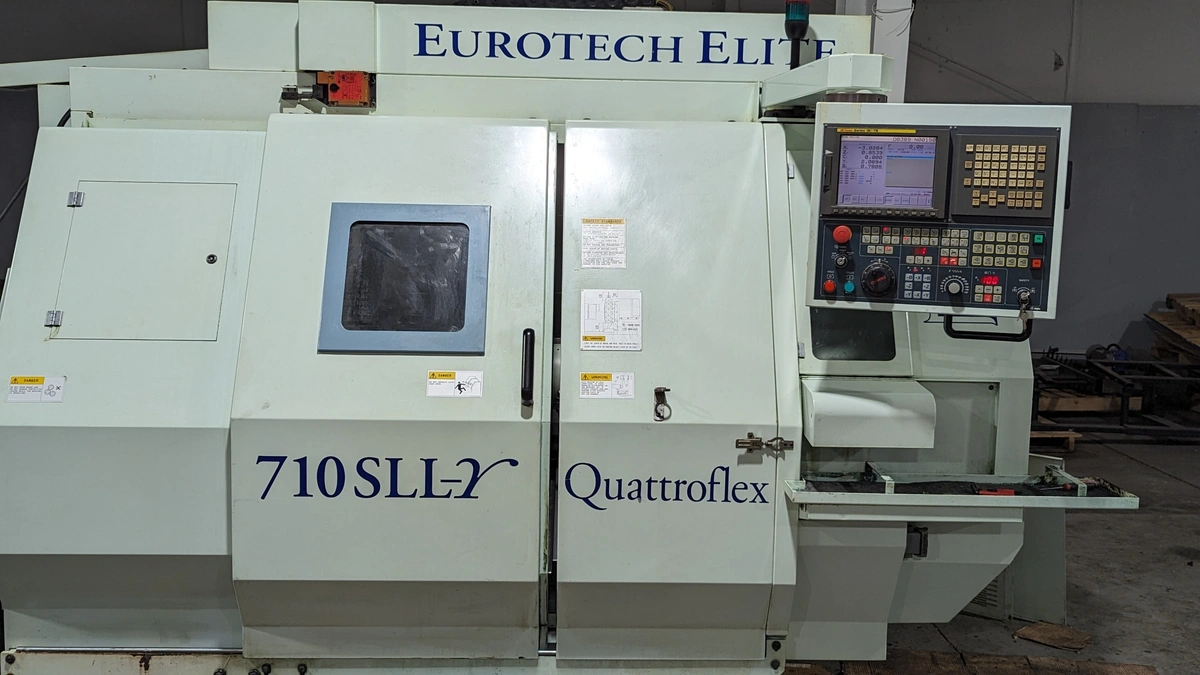

Eurotech 710 SLLY Quattroflex
Have one to sell?
ConditionUsed
1 available
Refurbished Eurotech 710 SLLY Quattroflex, 5-Axis or More CNC Lathes manufactured by Eurotech [2 Available: 2005 & 2006] . This machine is equipped with tool holders, collet chucks, and a chip conveyor. Maximize your productivity without breaking the bank. Work Completed sheet available/ Will be Painted & New decals applied.
Tool Holders
Collet Chucks
Chip Conveyor
MACHINING CAPACITY
Bar capacity in 2.56
Max. machining diameter in 9.45
Max. swing over diameter in 20.47
MAIN SPINDLE
Max. speed rpm 4000
Spindle nose ASA 6”
Spindle bore in 3.15
Inside diam. of bearings in 4.33
Chuck diameter in 8
Motor power HP 35
C-axis: least input value deg - 0.001°
SUB-SPINDLE
Max. speed rpm 4000
Spindle nose ASA 5”
Spindle bore in 2.17
Inside diam. of bearings in 3.15
Chuck diameter in 6.5
Motor power HP 15
C-axis: least input value deg - 0.001°
ClearShift travel in 4.72
UPPER TURRET
Max no. of static tools no. 96
Turret indexing (1 pos) sec 0.15
Max no. of live tools no. - 24
RPM live tool - std. / max rpm - 4000 / 60,000
Motor power HP - 5.0
LOWER TURRET
No of stations no. 12
Turret indexing (1 pos) sec 0.15
Max no. of live tools no. - 24
RPM live tool - std. / max rpm - - 4000 / 60,000
Motor power (30 min. rating) HP - 5 geared
COOLING SYSTEM
Tank capacity gal 66
Electropump motor rating HP 5
DIMENSIONS AND WEIGHT
Machine with chip conveyor in 163.4 l x 82.7 w x 86.6
Spindle center height in 41.7
