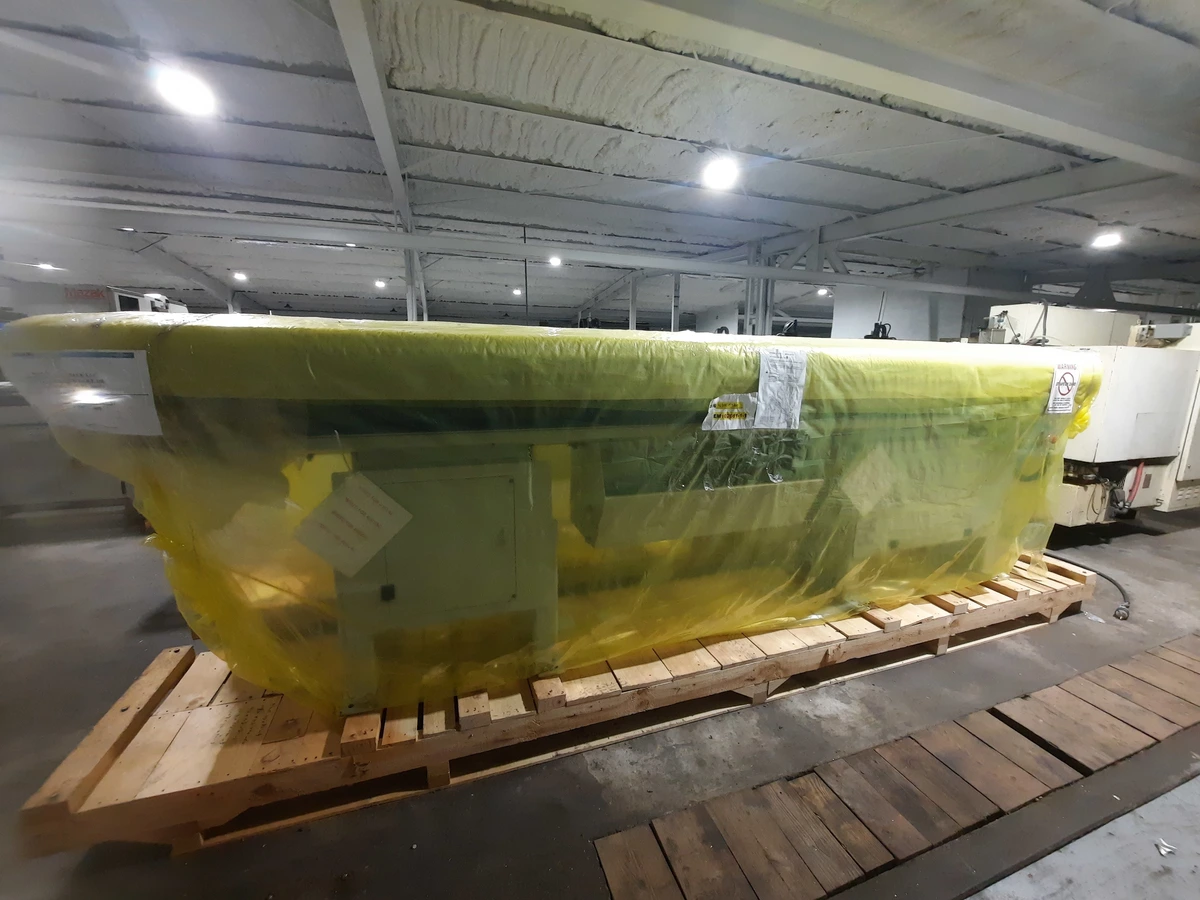

NEW 2022 Edge Partriot 551 Barfeeder
Have one to sell?
ConditionNew
1 available
New
The Edge Technologies’ Patriot 551 automatic bar feeder is designed specifically for the U.S. marketplace. This bar feeder is designed for automatically feeding round, square, and hexagonal bar stock in fixed headstock CNC lathes with a stock diameter range of 5-54.5mm and in lengths up to 12 feet.
33mm Guide set
33mm spindle liner
1" collet
1" bushing
High Voltage Kit
* Includes EDGE Installation [US] /Trip charge for Canada & Mexico
* Full Warranty
Bar diameter capacity-no bar preparation: 5 mm to 50.8 mm (2.000”)
Bar diameter capacity-with bar preparation: 5 mm to 54.5 mm (2.145” front ejection only)
Maximum bar length: 3800 mm (12 feet 6 inches)
Minimum bar length: 1000 mm (39.400”)
Maximum remnant length: 406 mm (16.000”)
Magazine rack capacity: 12”
Bar loading cycle time: 35 seconds for 12-foot bar
Material straightness specification: .007” TIR/foot of material (V blocks, 3 points equidistant)
Feed force (pusher torque): max 450 N, adjustable
Forward feed rate: 750 inches/minute max, adjustable
Return feed rate: 1000 inches/minute max, adjustable
Power consumption: 1.5 kW – (2 kVA)
Operating voltage: 230V/60Hz 3-phase
Control voltage: 24V DC
Oil capacity: 57 liters (15 gallons)
Oil viscosity: ISO 150 cST
Compressed air supply: 6 bar (90 psi)
Compressed air consumption: approx. 8 liters per loading cycle
Machine weight: 2,700 lbs
