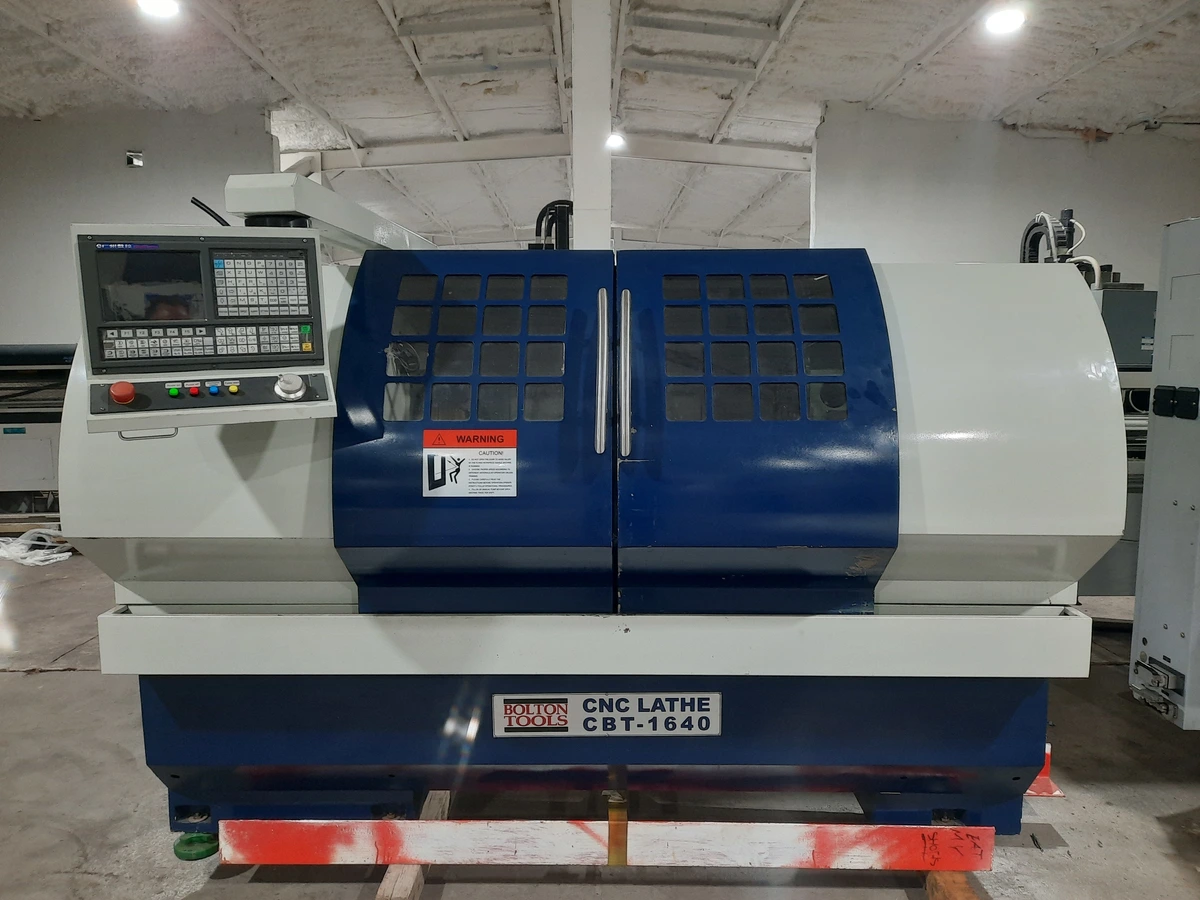

2014 BOLTON CBT-1640 lathe
Have one to sell?
ConditionUsed
1 available
The CBT1640 sports and impressive 2 3/8" spindle bore, and a 6 position
auto indexing tool post for easy tool changes. The CBT1640 is a very rigid and reliable CNC lathe, and we've had nothing but satisfied customers!
https://www.boltontool.com/bolton-tools-16-x-40-cnc-metal-lathe-6-way-tool-post-2-3-8-bore-cbt1640
FEATURES:
GSK 980TDc servo motor, CNC control.
Electronic hand wheel for manual control.
2-3/8” Spindle bore.
10HP, 220V/440V, 3Phase Motor, prewired 220V.
Hardened and precision ground bed-ways.
3-bearing spindle support.
Easy access chip removal.
40Mb Hard Drive – For Internal Program Storage.
Flash Memory – For External Program Storage and Transfer.
Tool Page / 99 Tools - You Can Specify Tool Radius, Length & Wear Offsets. Provides a Graphical Tool.
STANDARD EQUIPMENT:
6-station automatic tool post.
Automatic lubrication system.
Coolant system.
10” 3-jaw chuck.
Work light.
Dead center.
Swing over Bed: 16".
Swing over Cross Slide: 8"
Distance Between Centers :40".
Spindle Bore: 2-3/8".
Spindle Nose: D1-6.
Spindle Taper W/ Sleeve: MT#6.
Number of Spindle speeds: Variable.
Range of Spindle Speeds (RPM): 150 - 2000.
Range of Longitudinal Feeds (IPR): 320in/min.
Range of Cross Feeds (IPR): 240in/min.
Cross Slide Travel: 9".
Carriage Travel: 35".
Tailstock Spindle Travel: 5".
Taper in Tailstock Spindle: MT#4.
Steady Rest Capacity (in.): 3/8 to 7.
Width of Bed : 13".
Motor: 10HP, 220V/440V, 3Ph, prewired 220V.
One piece cast iron base.
Overall Dimensions: 114"x 60" x 77".
Shipping weight: 4200 LBS.
