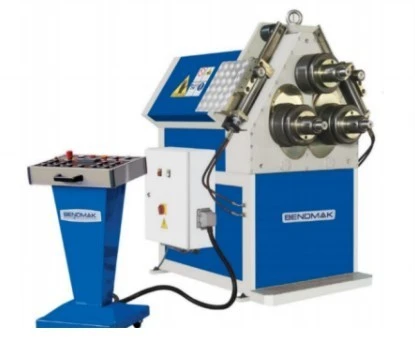

Bendmak PRO 120 Angle Roll
Have one to sell?
ConditionNew
1 available
New
DESCRIPTION:
5" X 5" Angle Roll with Steel Machine Body (ST-52) Construction, on
Pro 120 Rolls are Driven by a Hydraulic Motor + Planetary Gearbox and Gears, Shafts
Made of Special Steel, Hardened and Grounded, Pro 120 Guide Rolls are in Two
Directions Hydraulic Adjustable, One Set Standard Rolls, Manual Lubrication, Lower Rolls
Hydraulic Movable Up and Down, Digital Display For Lower Rolls, Separate and Moveable
Control Panel, Horizontal & Vertical Working.
Steel Machine Body (ST-52) Construction, on Pro 120 Rolls are Driven by a
Hydraulic Motor + Planetary Gearbox and Gears, Shafts Made of Special Steel, Hardened
and Grounded, Pro 120 Guide Rolls are in Two Directions Hydraulic Adjustable, One Set
Standard Rolls, Manual Lubrication, Lower Rolls Hydraulic Movable Up and Down, Digital
Display For Lower Rolls, Separate and Moveable Control Panel, Horizontal & Vertical
Working.
GENERAL SPECIFICATIONS
Max. Section Modulus: 4.3-7.3 CM3 IN3
Roll Diameter: 15.35”
Shaft: 4.72”
Bending Speed: 13’ FT/MIN
Motor Power: 20 HP
Length FT: 6.5’
Height FT: 6.7’
Width FT: 4.8’
Weight: 10,405 LBS
