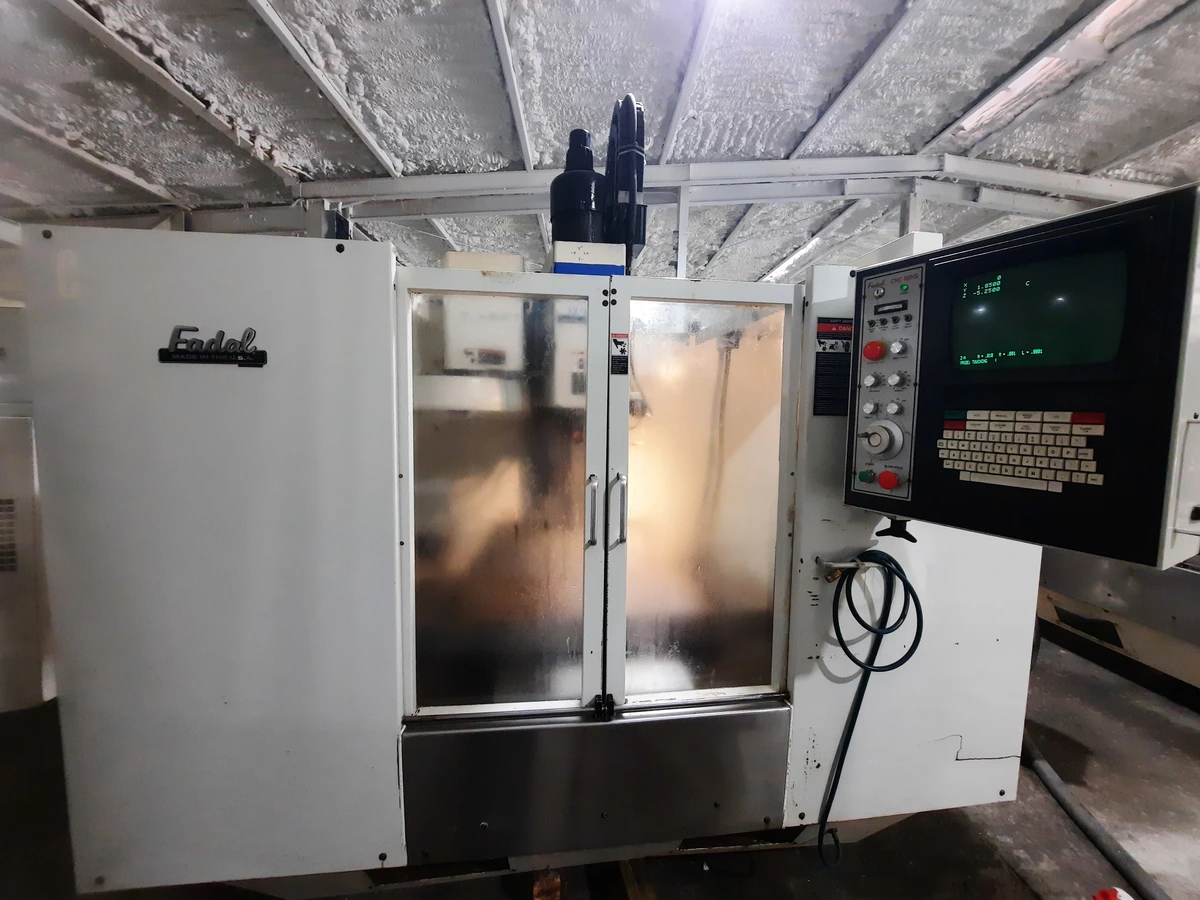

1994 Fadal Model 904 VMC 40
Have one to sell?
ConditionUsed
1 available
Tool holders to fill the ATC
Manuals
Control:Fadal CNC88HS Control
Table size:39" x 16"
Maximum table load:750 lbs.
Distance spindle nose to table top:4" - 24"
X-axis travel:22"
Y-axis travel:16"
Z-axis travel:20"
Spindle taper:CAT 40
Spindle speeds:10,000 rpm
Spindle motor:15 HP
Tool magazine capacity:21 Station Tool Changer
Maximum tool diameter / length / weight:3" / 15" / 15 lbs
Rapid traverse rates:400 IPM
Machine dimensions lxwxh:85" x 77" x 94"
Machine weight:8000 lbs.
