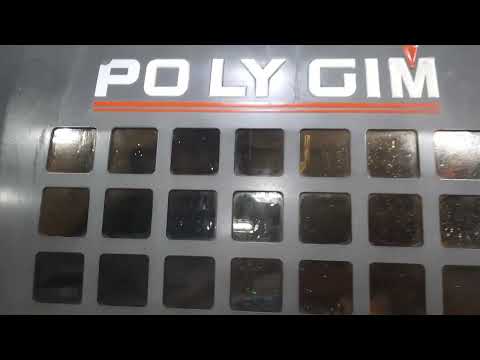

2011 Eurotech Kobra 20 SLY (PolyGim Diamond20 CSBII)
Swiss Type Automatic Screw Machines
The SwissTurn Y-axis slides dualspindle Swiss type CNC auto lathe - the ultimate for bar machining.
The main performance benefits offered:
* Reduction of cycle times
* Great rigidity to allow machining of tough materials
* Load up to 30 cutting tools for machining of complex parts and reduce set-up times
* Ergonomics for quick and easy access for retooling operations
* Quick change-over from guide bushing to non-guide bushing

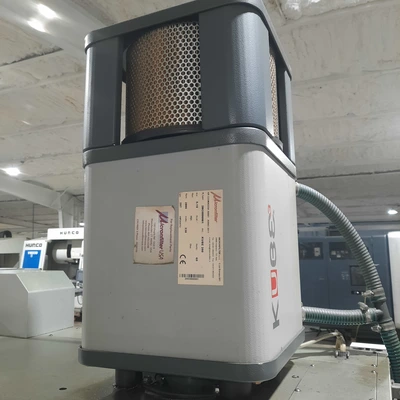

Mist Collector
Chip Conveyor

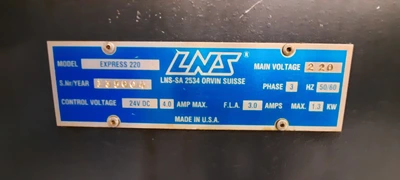

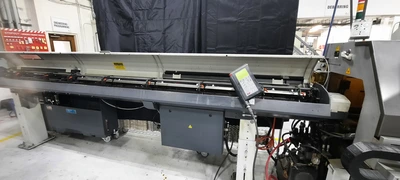

LNS Express 220 Barfeeder
| Spindle Hole Dia | 20 mm |
| Power | 5 hp |
| RPM | 8,000 RPM |
| # Axis | 7 |
| Control | CNC (Mitsubishi M70) |
| Dimensions | 96" x 56" x 65" w/ Chip Conveyor |
| Weight | 7,700 lbs w/ Chip Conveyor |
Main Spindle Horsepower 3
Main Spindle RPM 10,000
Sub Spindle Horsepower 3
Sub Spindle RPM 10,000
Stroke in one chucking 80mm
# Cross Rotating Tools 6 or 7
# End Rotating Tools 9 or 10
# B-axis Live Tools 0
# Axes 7
# Tools 30
Max drilling diameter 12mm
Max Tap M10
Cut-off Confirmation Standard
Chip Conveyor Standard
Work Piece Conveyor Standard
Control Mitsubishi
Screen 10" Color
Control Options Loaded
Convertible Guide/No Guide Yes
