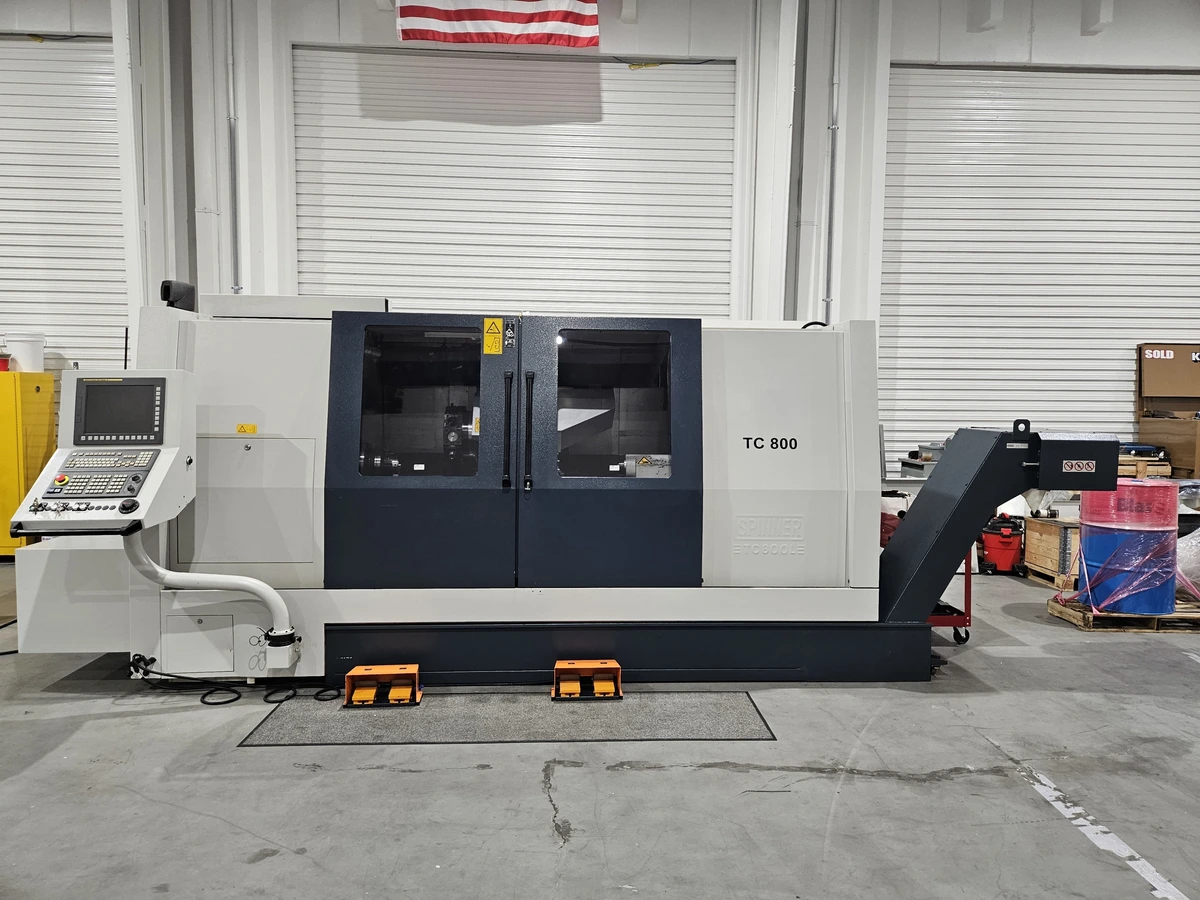

2018 SPINNER/EUROTECH TC800 100mm LY Long bed 5 axis barrel-shaft lathe with programmable double automatic SMW steady rest, Live Tools & Y axis

TC800 110mm LY SPECIFICATIONS
MACHINING CAPACITY
Maximum bar capacity................................................4.33”
Maximum machining diameter....................................19.7”
Maximum machining length .................................... 59.05”
Maximum swing over diameter on the bench ............ 31.5”
MAIN SPINDLE
Spindle bore.................................................................. 4.3”
Spindle speed range (infinitely variable).......... 2,600 RPM
Spindle motor........................................................ 49.6 HP
Motor type .........................................................Wide range
Spindle nose ........................................................ A11 DIN
Y-axis stroke .....................................................4.7”
TURRET
Turret indexing time ............ . 0.2 sec/pos. (1-station)
Turret indexing type....................................... bi-directional
Number of stations......................................................... 12
TAILSTOCK
Positioning travel............................................... 35.5”
Quill diameter.................................................... 4.33”
Flange for live center......................................... MK4
REVOLVING TOOL ATTACHMENT TURRET
Number of positions..................................................... 12
Drive motor – S3 40%. rating (Fanuc).............. 12.3 HP
Speed range (infinitely variable)................... 4,000 RPM
Engagement time............................................ immediate
C-AXIS CONTROL W/ SPINDLE POSITIONING
Spindles................................................................... Main
Spindle positioning............................................. Full “C”
Minimum command increment ................... 0.001 degree
Positioning system..................................... Spindle motor
Degree of movement .................................Programmable
Rapid speed rate ............................................... 100 RPM
GENERAL INFORMATION
Voltage required............................. 400 volt AC, 3-phase
Air required ........................................... 80 psi @ 4 CFM
Amperage Draw ................................................ 75 Amp.
MACHINE DIMENSIONS
Width......................................................................... 78”
Height........................................................................ 84”
Length with chip conveyor...................................... 227”
Machine weight with chip conveyor .............. 18,730 lbs.
