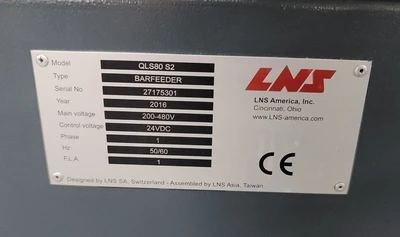

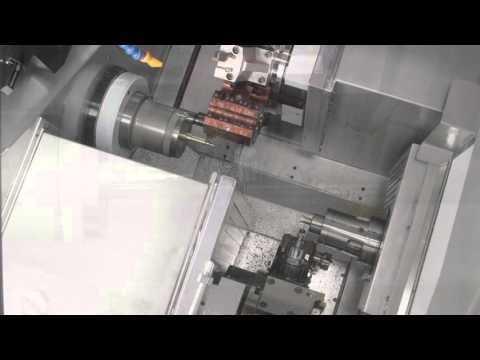

2016 Eurotech B446 SY2 Trofeo w/ LNS QLServo 80 S2 Barfeeder

MACHINING CAPACITY
Maximum bar capacity 1.77” (2.00” Optional)
Maximum turning diameter 8”
Maximum stroke Y-axis stroke (both) 3.8”
CHUCK WORK
Chuck diameter - (main spindle) 8”
- (sub-spindle) 8”
Type hydraulic
Maximum speed 5,000 RPM
MAIN SPINDLE
Draw-tube capacity 1.77” (2.00” Optional)
Spindle through bore capacity 2.17”
Spindle speed range (infinitely variable) 5,000
Variable speed steps Direct drive
Spindle motor (Fanuc 22S) 20 HP
Motor type S series
Spindle nose ASA 5”
SUB-SPINDLE
Drawtube capacity 1.81” (2.05” Optional)
Spindle through bore capacity 2.17”
Spindle speed range (infinitely variable) 5,000
Spindle drive motor (variable speed) max. rating 15 HP
Spindle nose ASA 5”
Slide movement - (B-axis) NC control
Slide stroke - (B-axis) 26.37”
UPPER TURRET
Number of tool stations (main spindle) 12
Turret indexing time 0.10 sec/pos.
Turret indexing type Fanuc servo-driven bi-directional
Slide stroke:
Z-axis 24.8”
X-axis 6.7”

LOWER TURRET
Number of tool stations (main spindle) 12
Turret indexing time 0.10 sec/pos.
Turret indexing type Fanuc servo-driven bi-directional
Slide stroke:
Z-axis 21.26”
X-axis 6.7”
REVOLVING TOOL ATTACHMENT UPPER/LOWER TURRET
Number of upper turret positions 12 max
Number of lower turret positions 12 max
Drive motor – maximum rating
(upper and lower turrets) AC HP 5
Speed range (infinitely variable) 4000
Revolving tool axis X, C, Z & Y
Y Axis Strokes (both) +1.97”/ -1.57”
GENERAL INFORMATION
Voltage required 400 volt AC, 3-phase
Air Supply 80 psi @ 4 CFM
Amperage Draw 120 Amp.
MACHINE DIMENSIONS
Width. 85.0”
Height 87.0”
Length with chip conveyor 182.0”
Machine weight with chip conveyor 16,500 lbs.

NOTE: Horsepower given are the 30 min. ratings.
