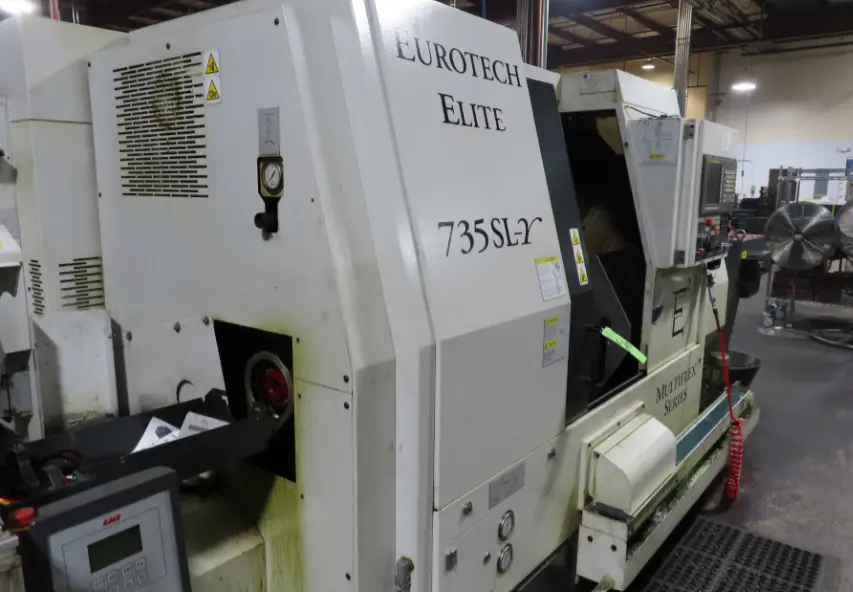

2014 Eurotech 735 SLY Package

General Specifications:
Bar Capacity: 2.56"
Machining Diameter: 12.60"
Machining Length: 22.04"
Swing Over Diameter: 22.83"
Y-Axis Stroke: +2.36 / -1.97"
Main Spindle
Draw Tube Capacity: 2.56"
Spindle Bore: 2.76"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
Spindle Nose: ASA 6"

Sub Spindle
Bar Capacity: 1.77"
Spindle Bore: 2.16"
Spindle Speed: 5,000 RPM
Spindle Motor: 15 HP
Spindle Nose: ASA 5"
B-Axis Travel: 19.29"
Rapid Traverse Rate (B-Axis): 1181 IPM
Spindle Positioning (Fully Programmable): .001 Degree
Turret
Indexing Time: 0.2 Seconds/Position
Indexing Type: Bi-Directional
Number of Stations: 12
Live Tools
Number of Positions: 12
Motor: 5 HP
Tool Speed: 4,000 RPM
Drilling Capacity: 25/32"
End Mill Capacity: 25/32"
Machining Capacity: .5"
C-Axis
Main / Sub Spindle: Yes
Spindle Positioning: Full C
Command Increment: 0.001 Degree
Positioning System: Scale Feedback
Degree of Movement: Programmable
Rapid Speed Rate: 100 RPM
General
Voltage: 400 V AC/3 Phase
Air Required: 80 PSI @ 4 CFM
Amperage Draw: 45 Amp
Machine Dimensions (with Chip Conveyor): 77" x 79" x 167"
Machine Weight: 11,400 lbs
